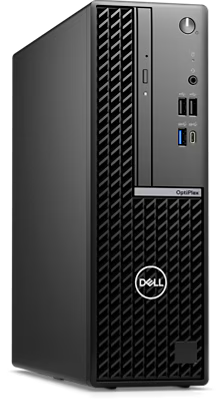

Dell OptiPlex Small Form Factor Plus 7020

Dell OptiPlex Small Form Factor (SFF) Plus 7020 — Scalable business performance in a compact 7.9L design.

Performance

• 14th Gen Intel Core processors — up to Core i9-14900 vPro (24 cores, up to 5.4 GHz); Intel vPro on i5/i7/i9 configs
• 16 GB DDR5 memory (4400 MT/s) — expandable up to 128 GB across 4 UDIMM slots
• 512 GB M.2 NVMe SSD (PCIe Gen4) — up to 3 M.2 SSD slots plus 3.5" HDD bays
• Intel UHD Graphics 770 (UHD 730 on i3) — supports up to 4 displays
• Optional AMD Radeon RX 6300 or RX 6500 discrete graphics

Software & Support

• Windows 11 Pro (Home and Ubuntu 22.04 LTS also available)
• Configurable warranty — 3–5 year onsite, ProSupport, and accidental damage options
• Dell Trusted Device security with Secured Component Verification
• EPEAT Gold, Energy Star, and TCO Certified

Design & Build

• Compact 7.9L chassis: 3.65" W × 11.42" H × 11.53" D — more ports than Micro, smaller than Tower
• Up to 50% post-industrial recycled steel in chassis
• Enhanced thermal design for quieter, cooler operation
• Weight: 9.43–12.38 lb
• 260W 80 PLUS Bronze PSU (300W Platinum optional)

Connectivity

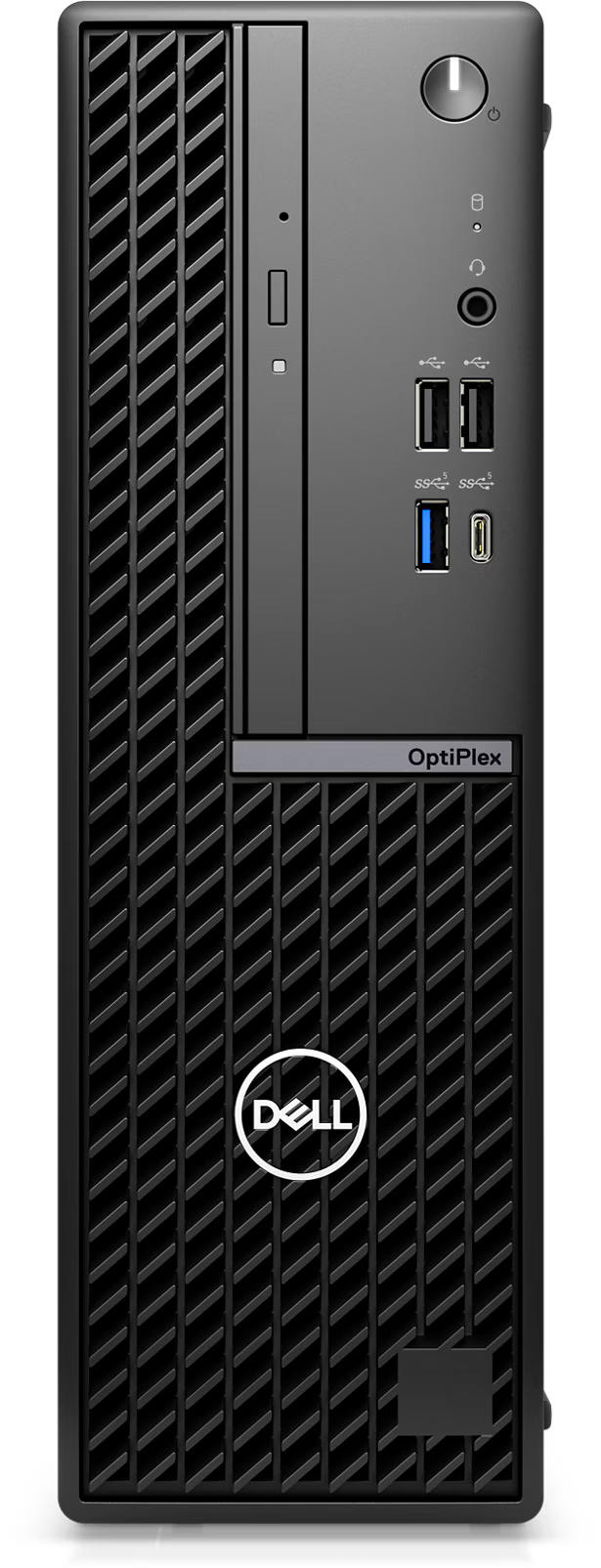

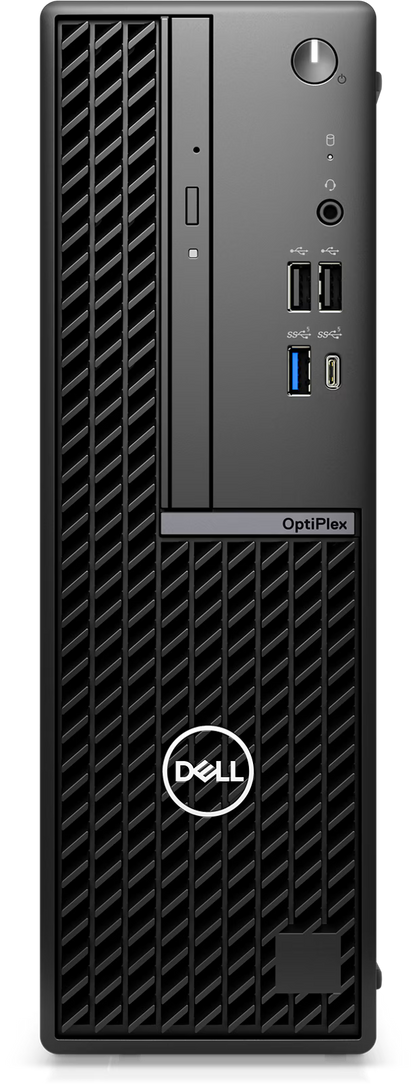

• Front: 2× USB 2.0 (1 PowerShare), USB 3.2 Gen 2 (10 Gbps), USB 3.2 Gen 2×2 Type-C (20 Gbps), universal audio jack

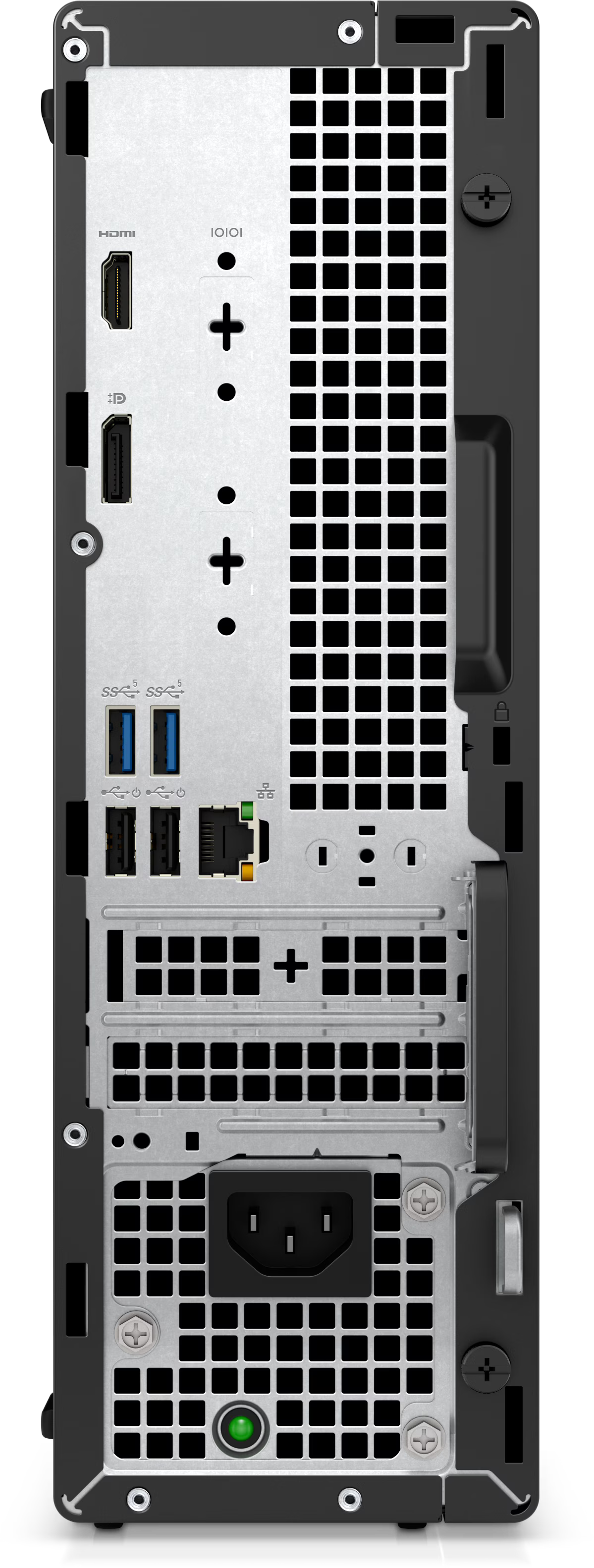

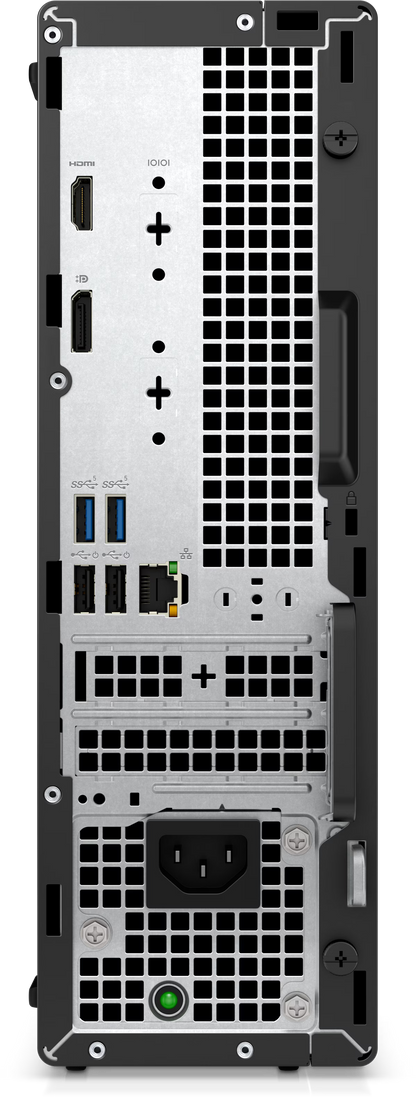

• Rear: 2× USB 2.0 (SmartPower On), 3× USB 3.2 Gen 1, USB 3.2 Gen 2 (10 Gbps), 3× DisplayPort 1.4a, retaskable audio, Gigabit Ethernet
• Optional expansion: Serial, HDMI 2.1, VGA, DisplayPort 1.4a, or USB-C with DisplayPort Alt Mode

Expandability

• 1× PCIe Gen4 x16 slot and 1× PCIe Gen3 x4 open-end slot
• 3 M.2 SSD slots (2× 2230, 1× 2280) plus 2× SATA 3.0 HDD bays
• SATA bay for slim optical drive; optional SD-card 4.0 slot
• M.2 slot for Wi-Fi/Bluetooth combo card (Wi-Fi 6E or Wi-Fi 7 optional)

Included

• Configuration-dependent — keyboard and mouse sold separately on most builds

Ideal for: Resource-intensive business workloads, multi-monitor setups, and IT-managed fleets that need maximum expandability and port density in a space-saving form factor.
